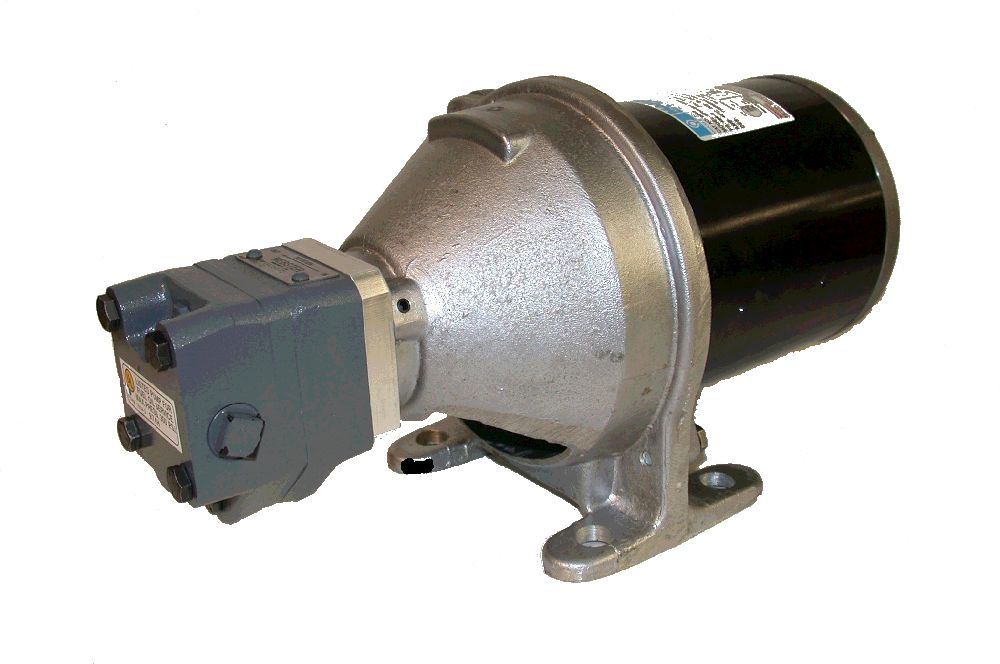

SPM
SERIES
SUPPLY PUMP/MOTOR UNITS PDF
 Developed
to supply fuel oil to one or more overhead furnaces, day tanks, or for
underground central distribution. Four pump/motor sizes are available, with
capacities of 15, 30, 65 and 135 gph (57, 114, 245 and 510 1/hr). 1/6 hp, 1/4
hp and 1/3 hp (124W, 186W and 248W) motors are split phase available for
either 115 or 230 volt operation. 1/2 hp (373W) motors are capacitor start
-induction run, totally enclosed with dual 115/230 volt windings. The units
are shipped completely assembled and include gauge, vacuum breaker and check
valve. All are 60 cycle, 1750 rpm, continuous duty.

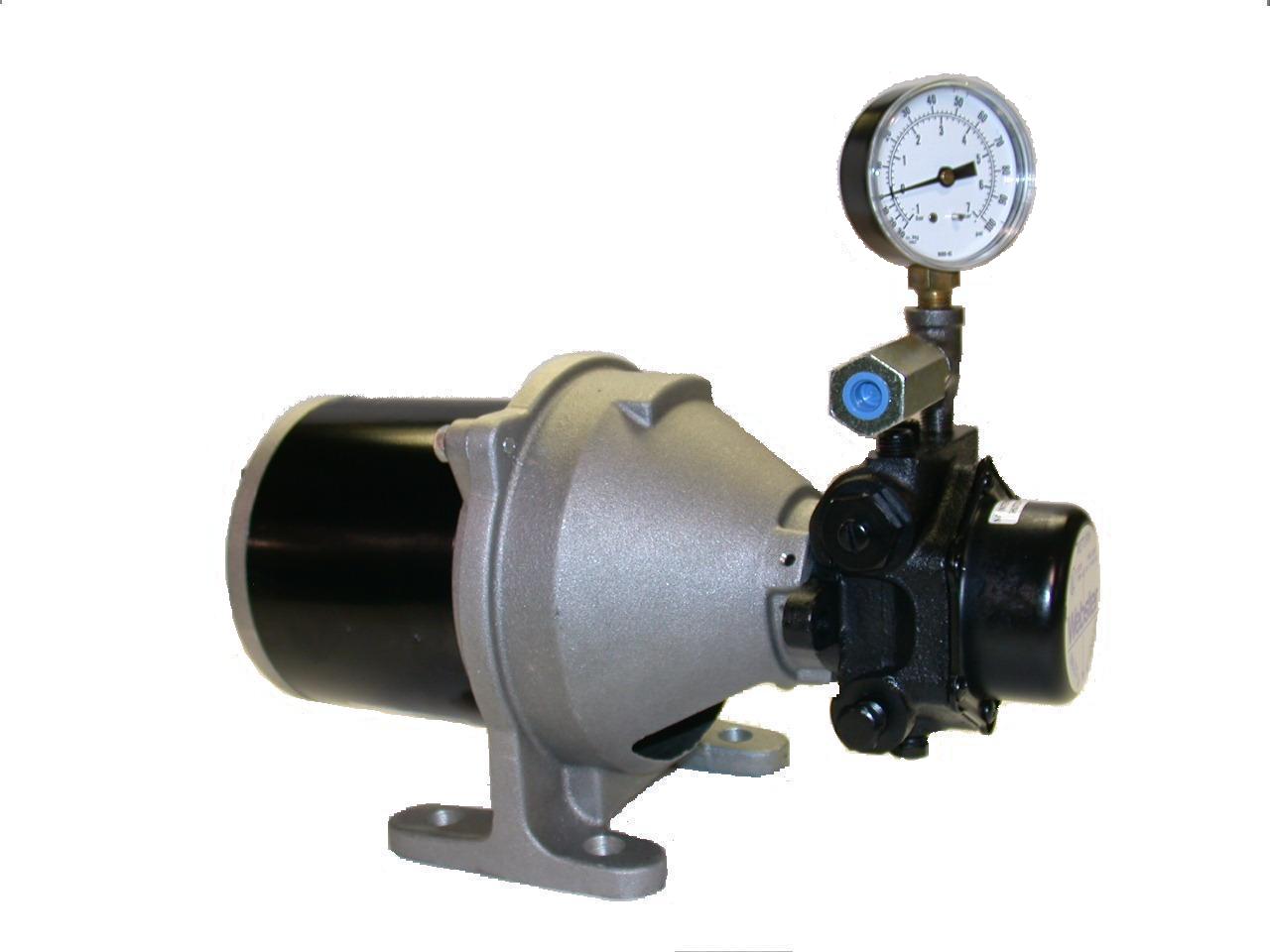

35223, 49116, 35202 SERIES
PUMP/MOTOR UNITS PDF
 Webster
35223, 49116 and 35202 Series pump units combine an electric motor and fuel
unit or transfer pump to provide a broad range of pumping capabilities for
transferring and supplying oil. The 35223 Series Pump/Motor Unit consists of
a Webster B Series fuel oil transfer pump motor with working pressures up to
200 psi. The 49116 Series Pump/Motor Units consist of a Webster 1R00 Series
Fuel Transfer Unit close coupled to a 1/4 hp electric motor capable of up to
66 gph at 100 psi. The 35202 Series Pump/Motor Units consist of a Webster R
Series or V Series fuel unit close coupled to a motor. This series is
available with 1/6, 1/4, 1/3 hp or 1/2 hp electric motors with a pumping capacity
to 66 gph at 100 psi.

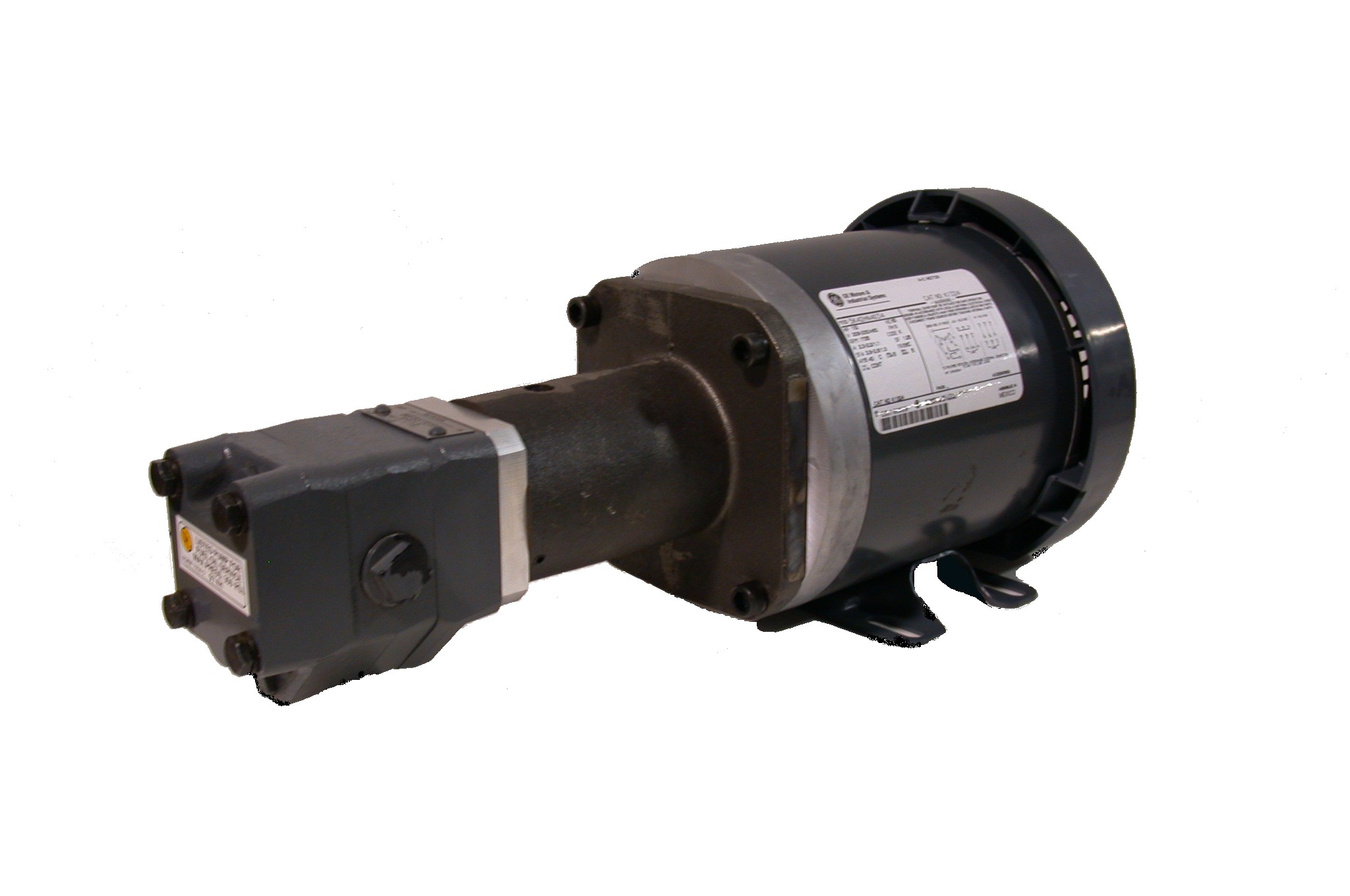

SPMB SERIES
HIGH CAPACITY AC
PUMP/MOTOR UNITS PDF
 B series
transfer pumps provide efficient pumping of #1 to #6 type oils, in capacities
from 80 to 290 gallons per hour (based on 1725 rpm), pressures up to 500 psi
(350 psi with #2 oil). B series pumps offer superior durability and high
mechanical efficiency. Double lip Viton seals are standard. B series
pumps are available in four sizes and incorporate hardened integral shafts,
journals and gears, special antifriction bearings, Viton seals, and cast iron
gear plates. Standard motors ranging form 1/4 hp to 1/2 hp and are 1725 rpm
NEMA "C" face, TEFC type motors. Available in 115 volt single
phase or 230 volt three phase, 60 cycle type. 18B, 37B, 47B series pumps have
1/2" NPTF porting, and the 59B series pump has 3/4" side inlet and
side outlet porting. UL listed.

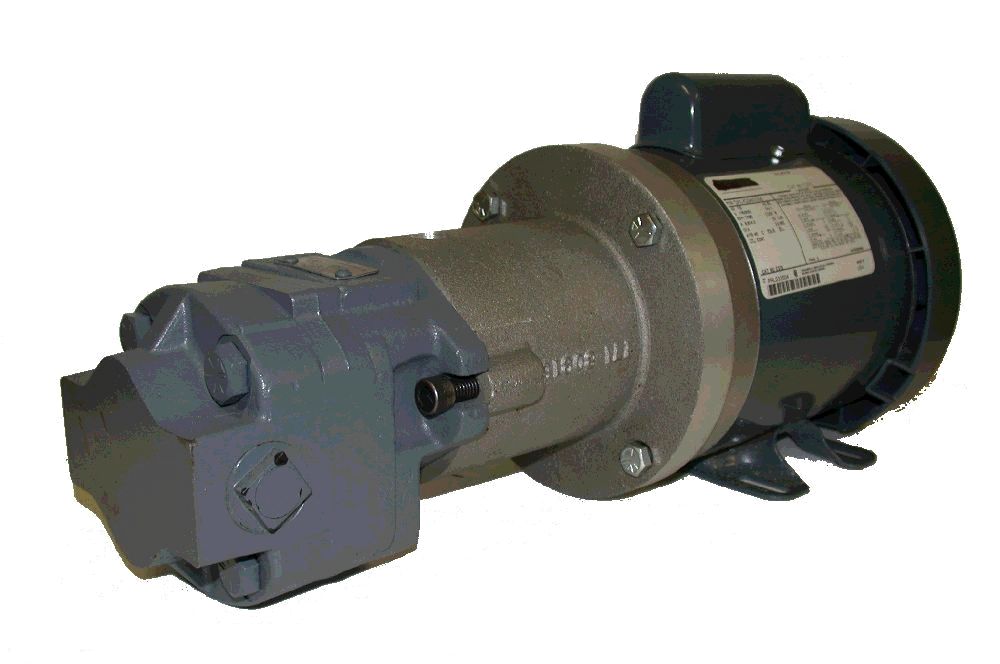

SPMV SERIES
HIGH CAPACITY AC
PUMP/MOTOR UNITS PDF
 Designed
for high capacity applications where 430 to 1730 gph are required. Efficient
gear type pumps are available in four sizes and incorporate hardened integral
shafts, journals and gears, special antifriction bearings, Buna-N seals, and
cast iron gear plates. Standard motors ranging form 1/2 hp to 15 hp (373W to
11.2Kw) are 1725 rpm NEMA "C" face, 115 volt single phase or 230
volt three phase, 60 cycle type with TEFC enclosures through 2 hp (1490W) and
OPDP enclosures over 2 hp(1490W).
|
